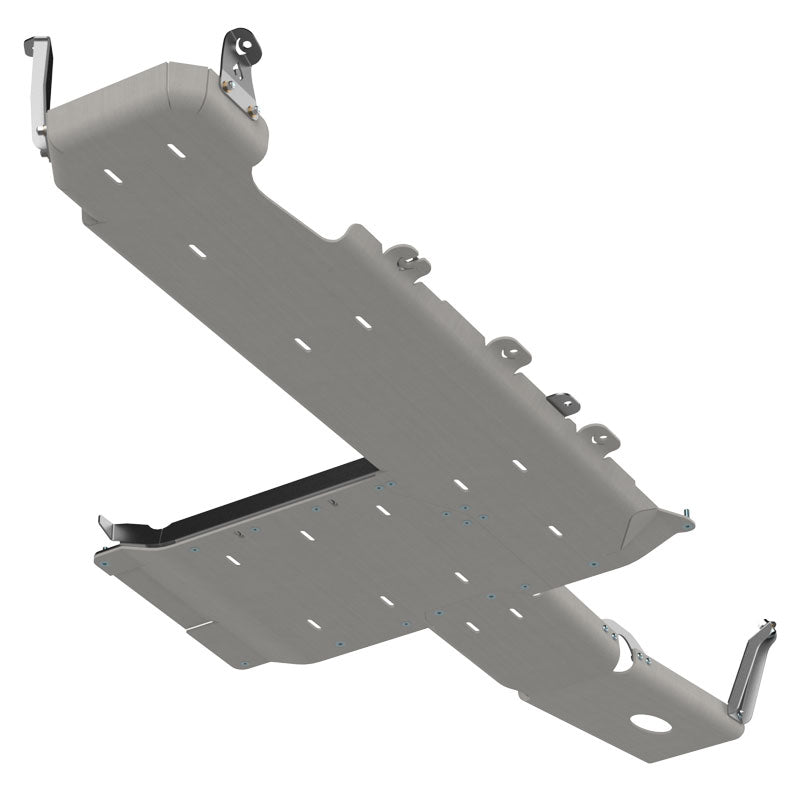

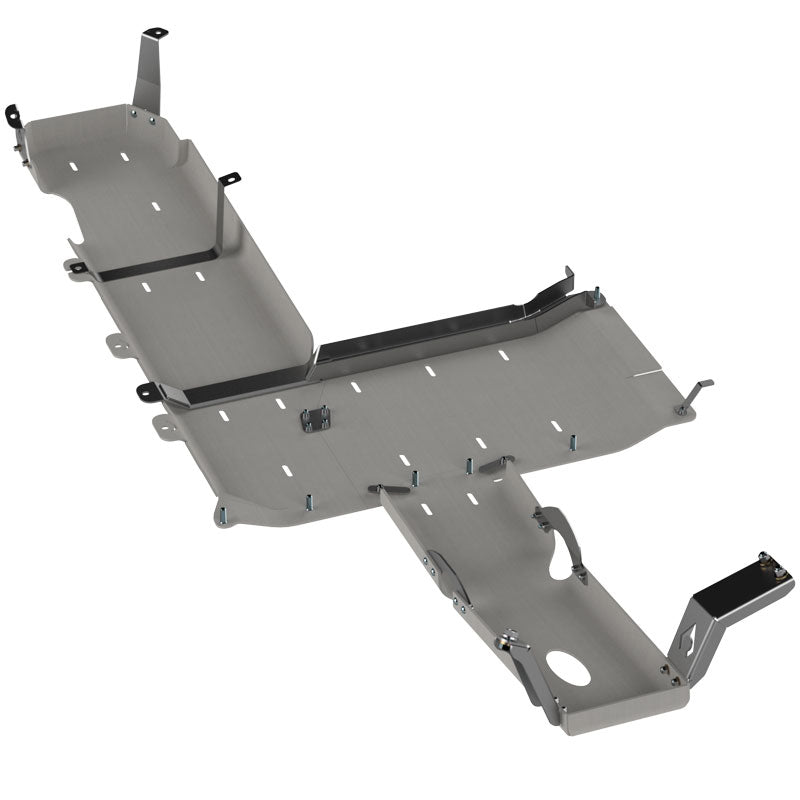

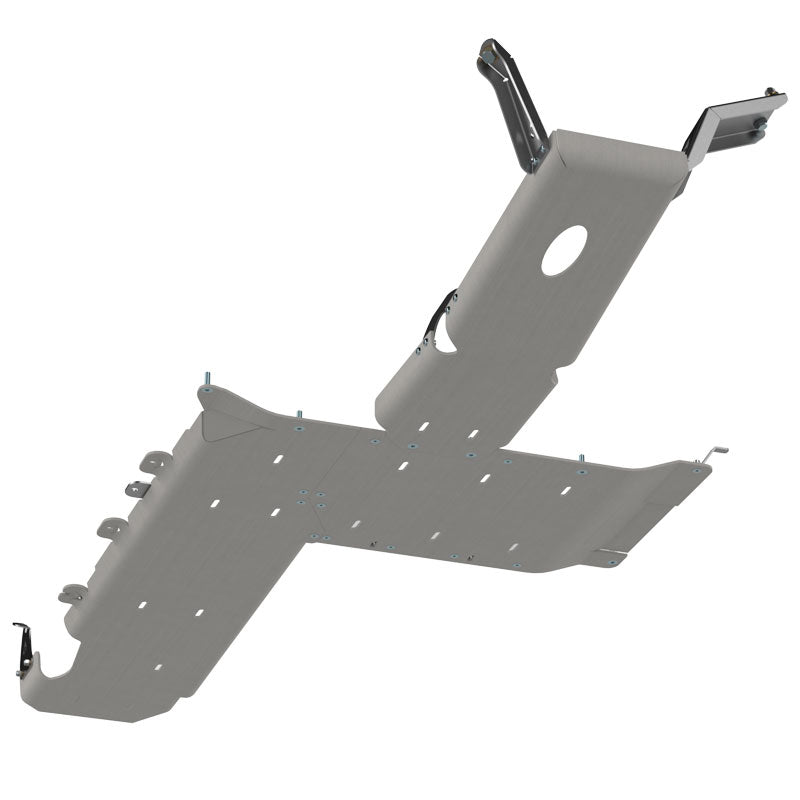

Artec Industries JL Full Bellypan 4 Door 3.6L Aluminum

Aluminum skid plates for heavy duty yet lightweight protection. At a total of 86 lbs, the total net weight is only 10 lbs more than factory skids but much heavier duty and more complete coverage. Artec Industries NEW JL Bellypan is designed to give your 2018 plus Jeep JLU Wrangler full protection underneath the vehicle.

Designed using CAD files directly from the manufacturer, this belly pan skid plate ensures that you have a great fit with factory components. Made from 1/4 inch thick 6061 Aluminum and 3/16 inch zinc plated Steel, and CNC cut and formed, the Artec JL Bellypan Kit offers both a strong and lightweight solution for your new Jeep JL.

• Adds only 10 lbs to net weight of vehicle yet covers far more and is heavier duty than factory skids
• 86 lbs total weight compared to the Steel version at 153 lbs a 44 percent weight savings
• Increases ground clearance of 3/4 inch from factory skids and even more compared to other aftermarket skid plates
• 1/4 inch 6061 Aluminum for skid plates, 3/16 inch zinc plated steel brackets
• Designed from factory CAD files for great and ultra precise fit.
• CNC laser cut and CNC formed using custom rolled dies for high strength, unique look, and perfect contour fitment to OEM components.
• All bolts under skid plate are countersunk for absolutely smooth bottom
• All nuts are pressed into steel brackets for easy, one tool removal
• Bolts directly to OEM T-case crossmember and frame using heavy duty flat head bolts that match OEM thread
• No need for an aftermarket T-case crossmember for completely flat surface
• Modular design lets you take off only one section for vehicle servicing

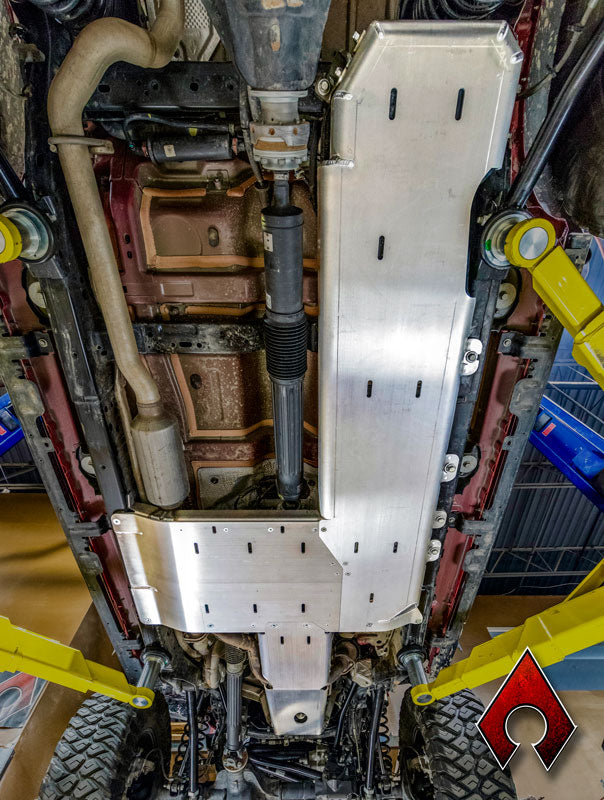

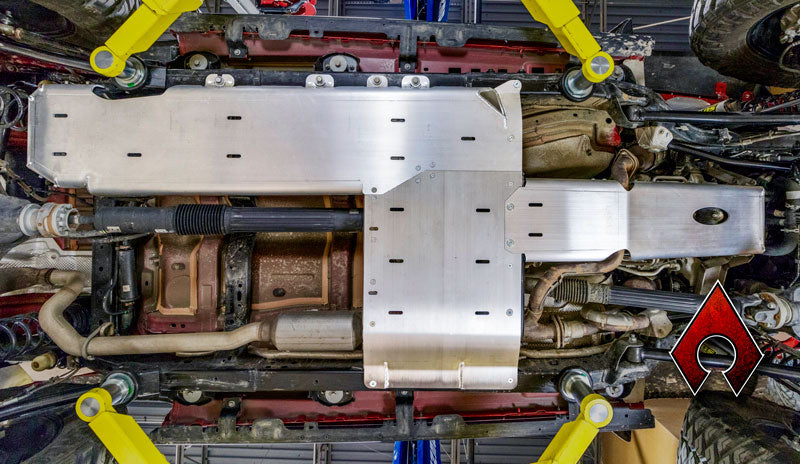

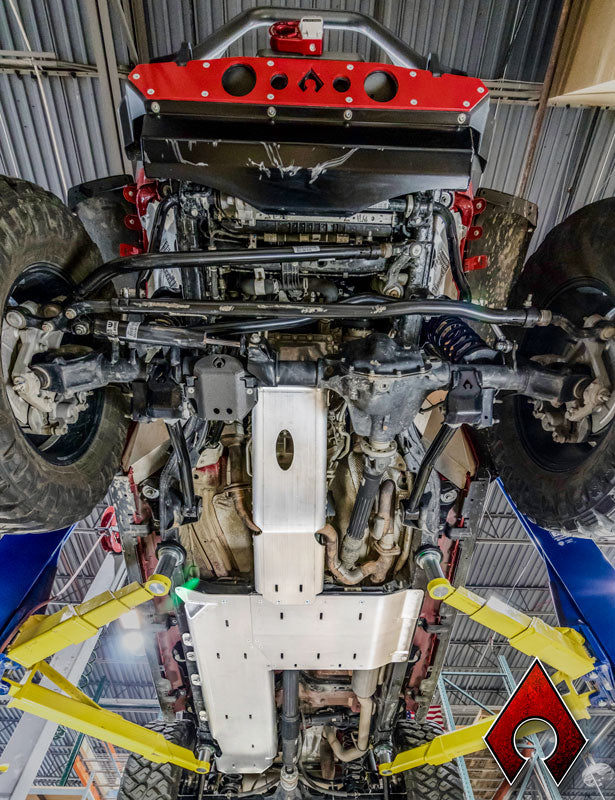

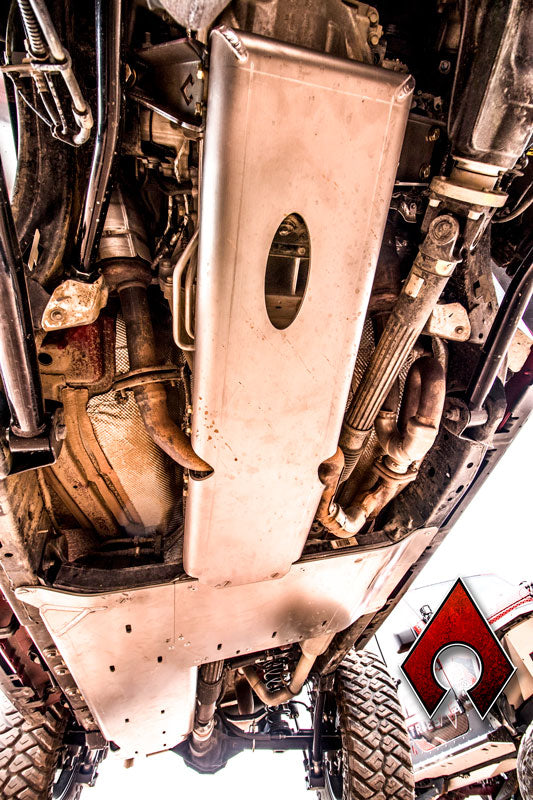

• Protects Oil Pan, Transmission Pan, Gas Tank, Front Exhaust and Transfer Case
• OEM gas tank skid is replaced for reduced weight and 3/4 inch higher clearance
• Artec Gas tank skid can be removed without dropping entire tank thanks to new additional cross-member and tank strap.
• Clearance near rear drive yoke shaft to prevent rubbing

OEM gas tank skid removal required. For easiest install, remove skid when tank is near empty. See instructions for simple ideas on removing OEM gas tank skid.
Note: This product requires general mechanics skills and should only be installed by someone capable of using basic tools. Artec Industries is not responsible for incorrect installation. By purchasing, the customer agrees that they are fully responsible for correct installation.
